Rescue and rescue version of amphibious vehicle

With excellent water and land traffic performance, our rescue amphibious truck vehicles can cross rivers and lakes or seas from the road without the restrictions of bridges or boats. These amphibious trucks can achieve water and land switch.

They can be widely used in complex areas, especially from road and river switching areas.

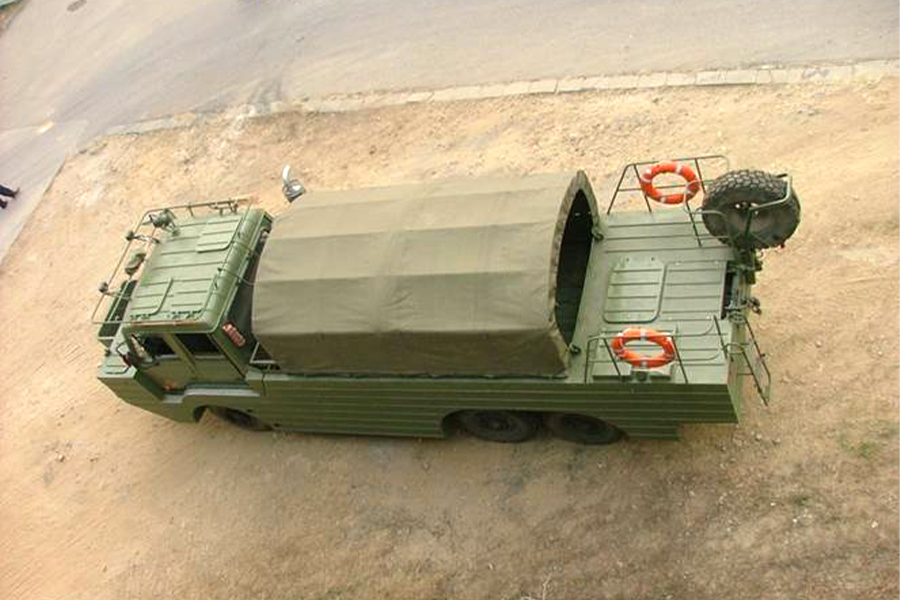

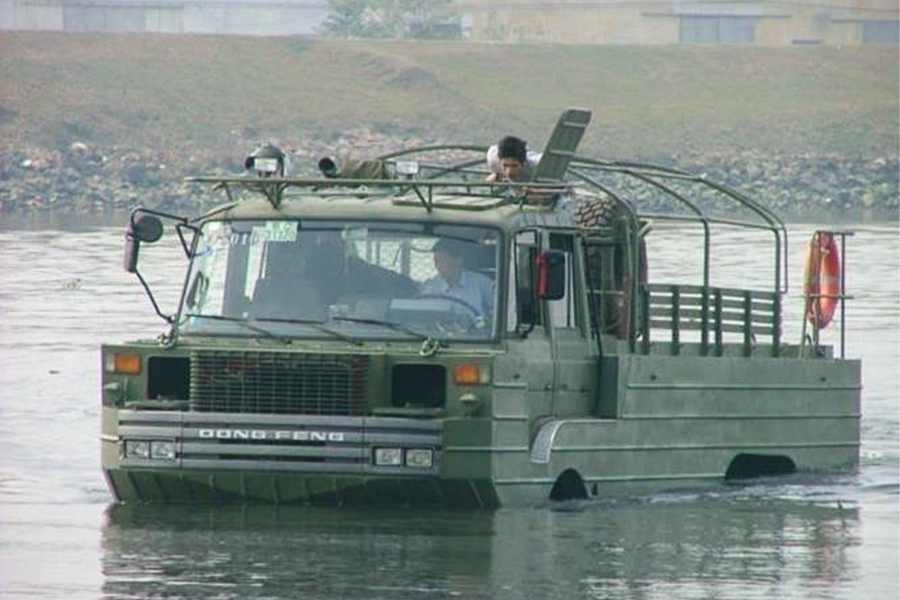

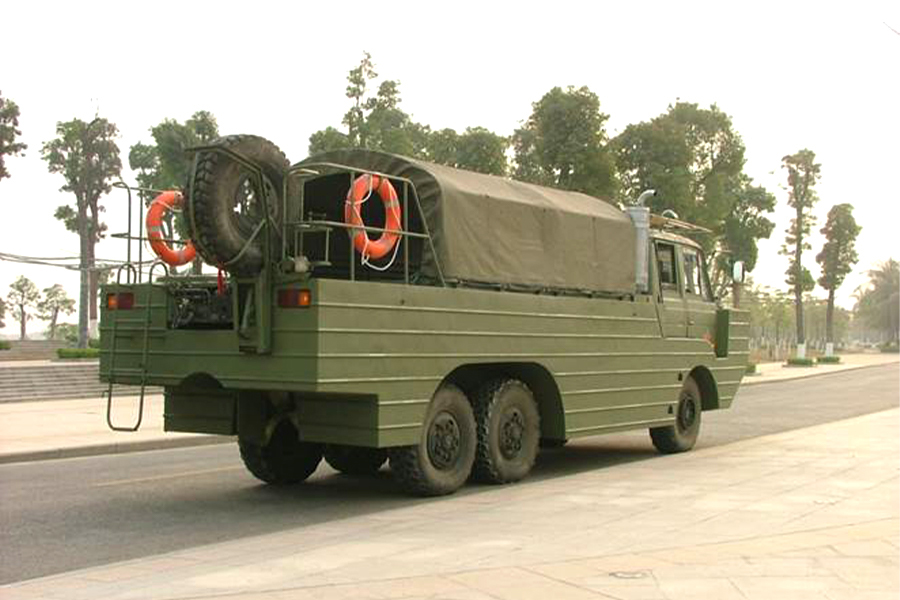

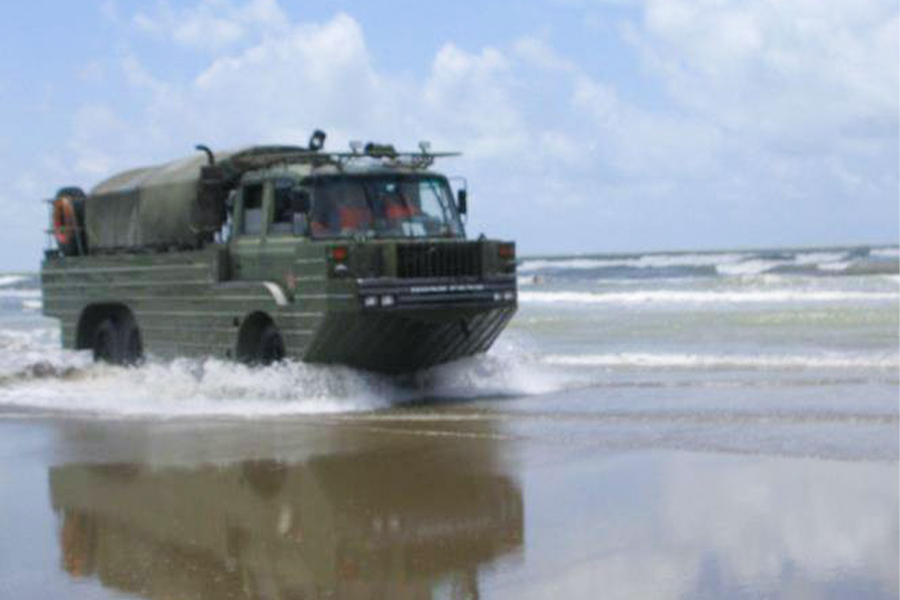

Multi-angle view

Streamlined design, imitation, which meet the needs of amphibious function.

Electrical intelligent control of various equipment (door, land and water mode switching Etc.)

+86-15895439421

Description
Inquiry

		EQ2102 military vehicle	Amphibious rescue engineering vehicle
Loading mass (kg)	When driving on dirt roads or off-road	3500	5000 Maximum load on water: 6000
Loading mass (kg)	on hard and good roads	5000	5000
Curb weight (kg)	With winch and 1 ton hydraulic crane	7920	9160
	front axle load	3970	4390
	Middle and rear axle loads	3950	4770
	with winch only	7120	8360
	front axle load	3170	3590
	Middle and rear axle loads	3950	4770
Total vehicle mass (off-road driving) (kg)	With winch and 1 ton hydraulic crane	11740	12660
	front axle load	4410	5000
	Middle and rear axle loads	7330	7660
	with winch only	10940	11860
	front axle load	3610	4300
	Middle and rear axle loads	7330	7560
Off-road trailer mass (kg)		4800
Dimensions (mm)	long	7495	10670(to spare tire) 9900(body length, excluding spare tire)
	width	2470	2600
	High (no load, according to the cab roof)	2740	3040 3280(calculated to the roof)
Wheelbase(mm)	Distance from front axle center to rear balance suspension center	4100	4880
Wheelbase(mm)	Center distance between middle and rear axles	1250	1250
Wheelbase(mm)	Front wheel (measured by grounding center)	1876	1876
Wheelbase(mm)	Middle and rear wheels (according to the grounding center)	1870	1870
Car size (mm)	long	4270	4300
	width	2294	2340
	high	900	1000
Approach angle		35°	≈30°
Departure angle		34°	≈30°
Minimum turning diameter (m)		18.8	20
Minimum ground clearance (mm)	Under the front, middle and rear axles	305(Load 3500kg)	305(calculated to the roof)
Minimum ground clearance (mm)	Under the front, middle and rear axles	450(Load 3500kg)
The height of the floor of the carriage from the ground (mm)
Rear tow hook center height from the ground (mm)		857	1450
