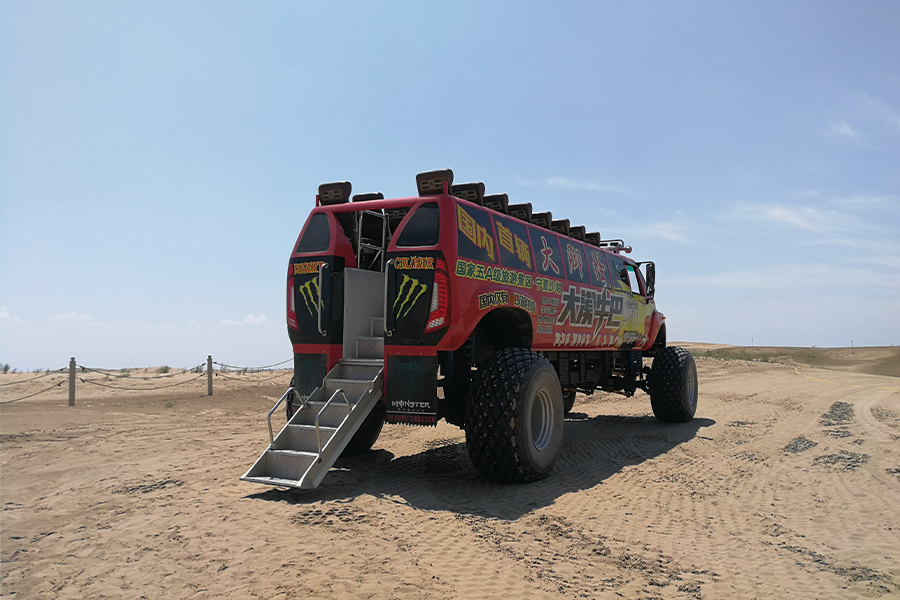

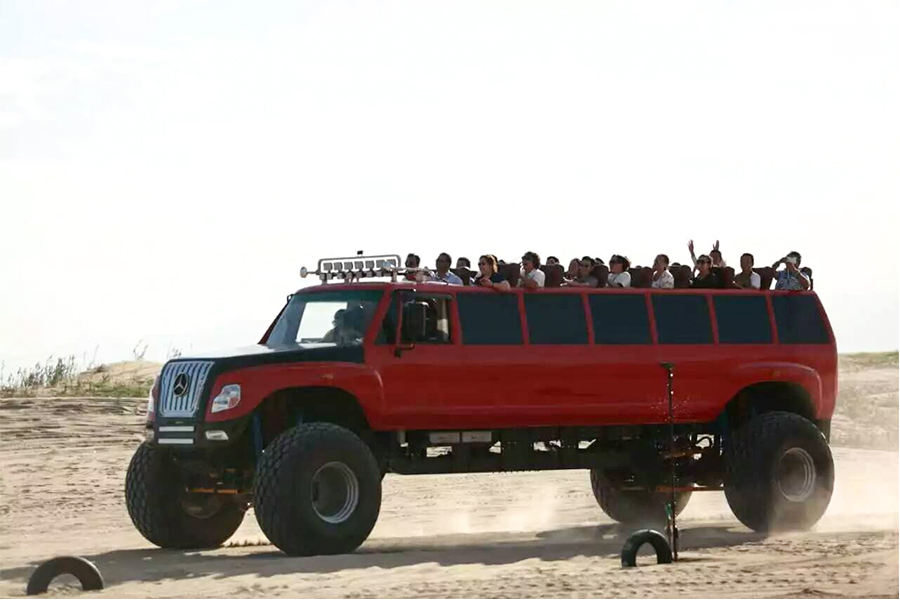

4WD Version Type II Desert Safari Truck is designed for harsh desert environments. It is equipped with a powerful engine and advanced suspension system to ensure stable driving in soft sand or rugged mountains. The vehicle interior is luxurious and comfortable, equipped with the latest technology entertainment system, making every desert adventure full of fun and convenience.
Size parameters | Dimensions (LxWxH) | 10700X3400X3580 | Performance parameters | Rated power (kw/min) | 309/2200 |
Wheelbase(mm) | 5000+3000 | Maximum torque (N m/min) | 1750/1300-1600 | ||
Front suspension/rear suspension(mm) | 1200/1500 | Displacement (L) | 12 | ||
Wheel base (front/middle/rear) (mm) | 2690/2670/2670 | Maximum speed (km/h) | 95 | ||
Approach / departure angle(º) | 50/34 | Minimum stable speed (km/h) | 3.5 | ||
The height of the upper plane of the frame from the ground (full load)(mm) | Front axle 1600, rear axle 1680, soil 30 error | 0-60km/h acceleration time (s) | ≤30 | ||
Quality parameters | Curb weight (kg) | 13000kg | Maximum grade(% ) | 60 | |
Maximum allowable gross mass of chassis (kg) | 41000 | Slope holding capacity (%) | 40 | ||
Maximum allowable axle load (kg) | Front axle 9000, middle axle 16000, rear axle 16000 | Minimum ground clearance (mm) | 605 (lower end of front axle housing) | ||
Drive form | 6X6 | Minimum turning radius (m) | ≤10 | ||
Maximum vertical obstacle clearance height (mm) | ≥1000 | ||||
Maximum cross trench width (mm) | ≥1000 | ||||
Maximum wading depth (mm) | ≥1500 | ||||
Fuel consumption per 100 kilometers under limited conditions (L) | <40 | ||||
Fuel tank volume (L) | 120 |
